PRICES

Complete bike from:
€8250
Frame only:
€4200

Scram Pinion Smart.Shift

An all enduring gravel bike with electronic shifting has been a lifelong dream of many riders and the Pilot team alike. Now the time has finally come to step into the future of gravel cycling with the Scram Pinion Smart.Shift. The Scram features the all-new TRP HYWIRE electric brake shifting units, so there is no need to change your riding position to shift the Pinion gearbox anymore. Wether you’re virtually folded in half with your hands deep in the handlebars or casually cruising with your hands on the hoods: shifting is carefree with the new Scram Pinion Smart.Shift.

The Scram combines the Pinion gearbox with a Gates CDX belt and cog set, in order to keep the maintenance to a minimum. We dare you- no, we double dare you to show us a more durable bike than this one!

LET'S GRAVEL WITH PINION

What is Pinion Smart.Shift?

Pilot and Pinion bring electric shifting at the highest level to gravel racing for the first time. Smart.Shift combines reliable and practically maintenance-free transmission shifting technology with the advantages of electric shifting. Shifting takes place in 0.2 seconds at the touch of a button – fast, ergonomic and intuitive. The system shifts while riding, at a standstill and under load!

The system functions are also smart: The automatically engaged starting gear can be selected individually with the Start.Select function. Smart.Shift comes with an optional Pre.Select function. It offers automatic shifting while you are not pedaling and – based on the preselected cadence – perfectly adapts the gear to changing speeds.

Pilot x Pinion frame

Pilot chooses to fully integrate the Pinion Smart.Shift system into the Scram frame. All cables run internally through the Scram’s downtube to their respective destinations, creating a clean look without any distractions from the bike’s lines. An easily accessible charging port in the down tube assures quick and effortless charging of the integrated Pinion battery.

Where there is electronic shifting, there is a battery. But where is this battery you ask? It is carefully integrated in the down tube of the Scram. Easily accessible for the mechanics at your local bike store, but out of sight for the rider: a proper win-win situation!

IT'S NOT A DREAM

“Belt driven, maintenance free, electric shifting”

STANDARD BUILD KIT

Drivetrain

Pinion C1.12i Smart Shift

Wheelset

OHR Cycling G2

Handlebar

Ritchey Venturemax

Stem

Ritchey Comp 4 axis

Seatpost

Ritchey Comp 2-bolt

Frame finish

Brushed Frame with Sandblasted Logo's

Fork

Pilot Carbon Gravel

Grips

Selle Italia Smootape

Saddle

Selle San Marco Shortfit Open-fit Start Up 144 Xlite

Extras

No extra

Tires

Vredestein Aventura 38-622 Black - Black

Carriers

No Carriers

Size

P1

P2

P3

P4

P5

Pedals

No Pedals

UPGRADES

FRAME SPECS

  • IS 42/52 head tube

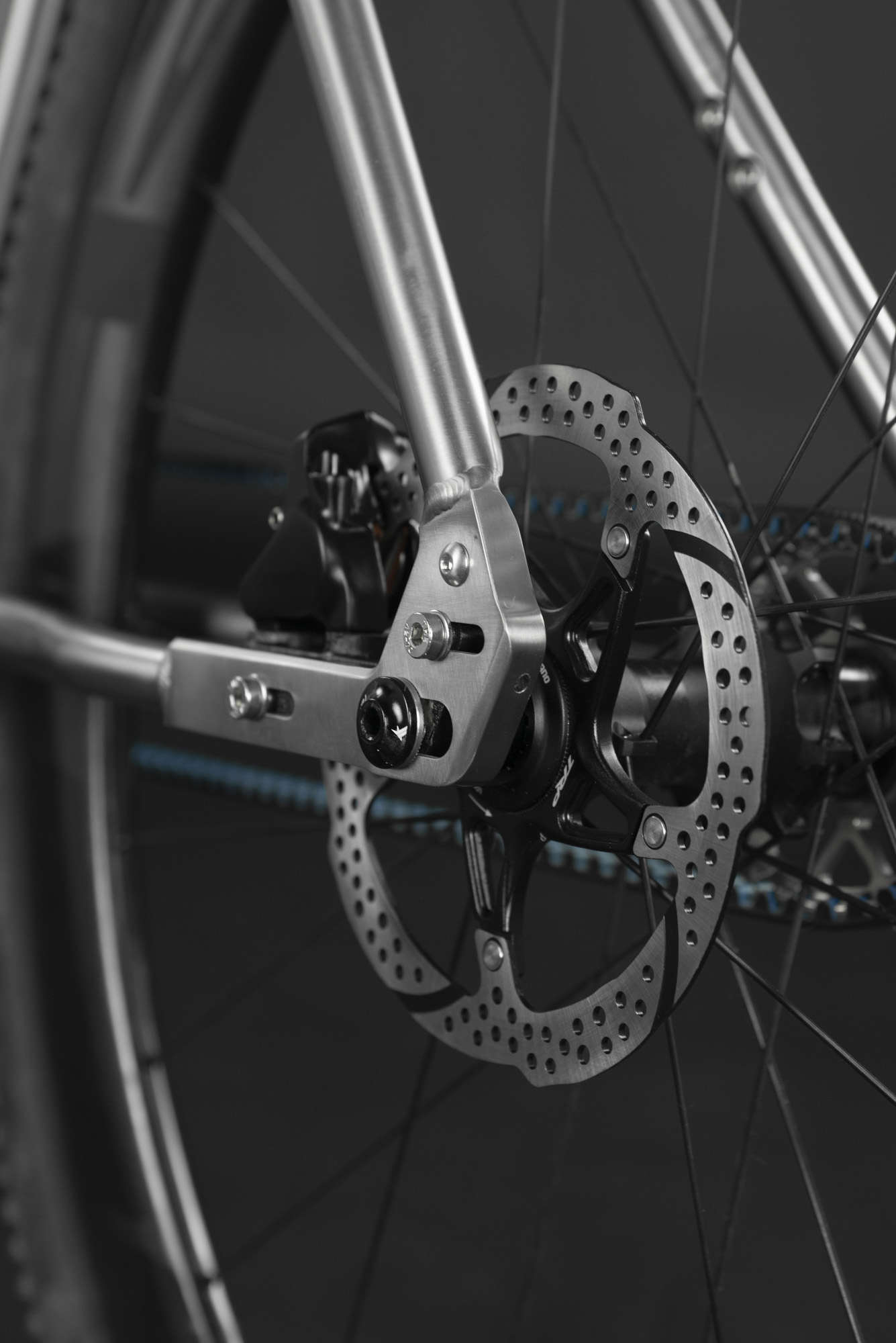

  • Flatmount 160mm disc brake on sliding dropout
  • 142 x 12mm thru axle cnc drop outs
  • Tire size max 45 x 622
  • Fender-ready (max tire width 700c x 38mm)
  • Hand-brushed finish
  • Precision casted Pinion bracket
  • Integrated Pinion battery
  • Charging port in down tube

PRICES

Complete bike from:
€8250
Frame only:
€4200
Scram Pinion Smart.Shift

CUSTOMIZE TO YOUR WISHES

At Pilot Cycles we are convinced that the rider has to decide how their ride has to be built up. So therefore you can select your build up in our very user-friendly online bike configurator. And if the component which you would like to see mounted on your bike isn’t in our bike configurator please let us know and we’ll do our very best to get it for you. After all you decide what your dream bike looks like!
